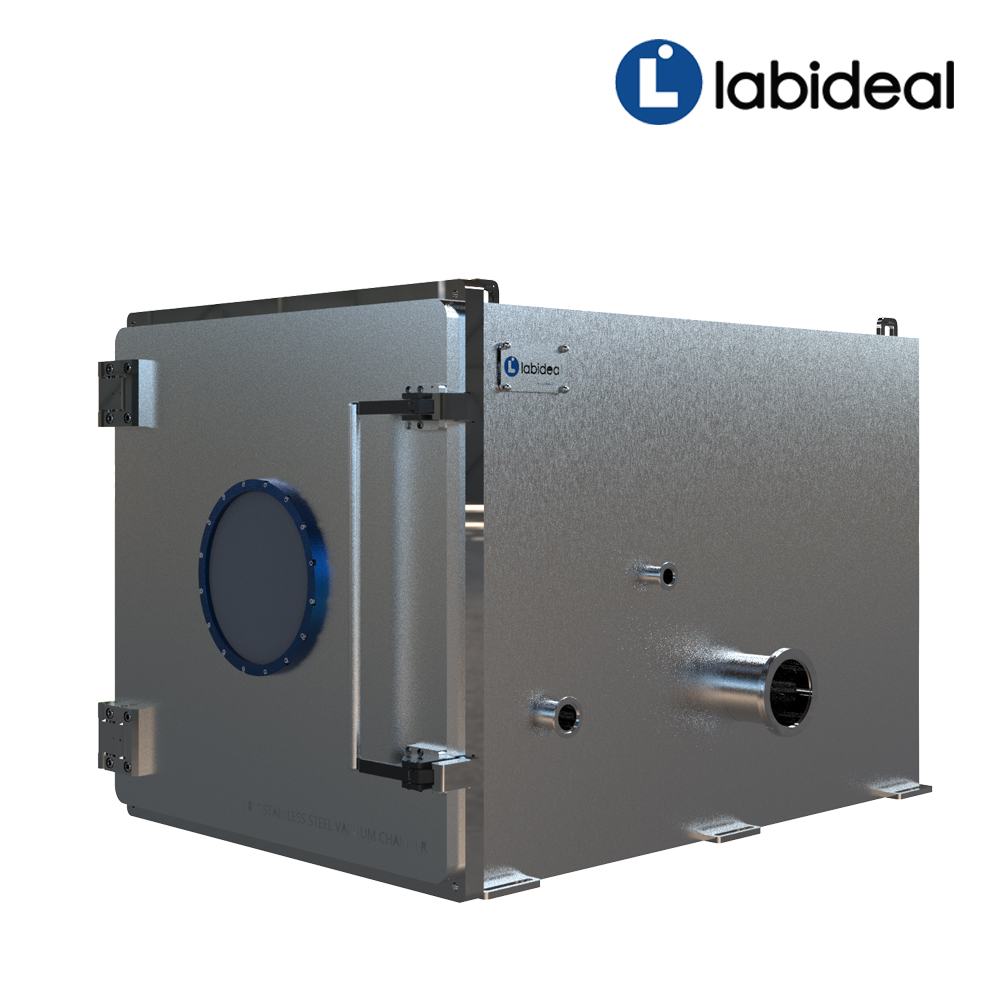

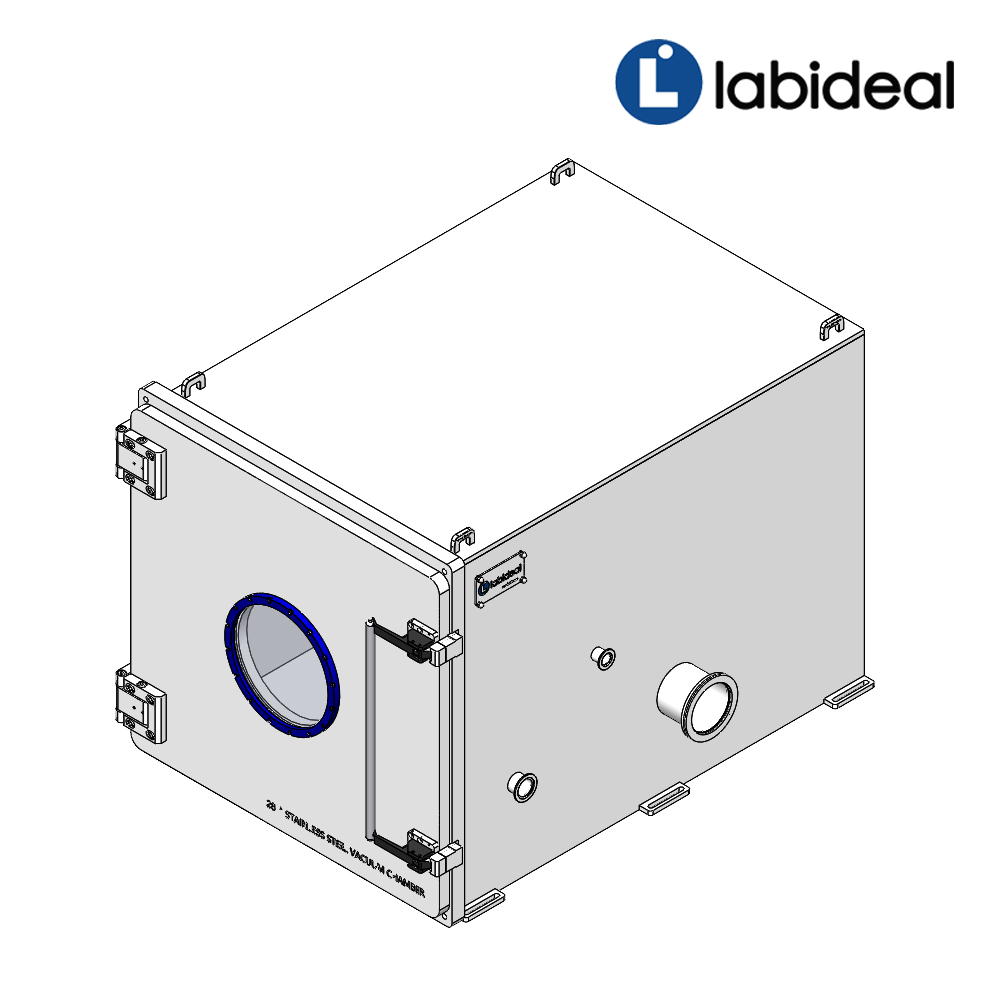

Custom Vacuum Chambers Welded Stainless Steel 28x28x40 inch, Preconfigured with ISO and KF Flanges, User Selectable Latching Door and Options
Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 28x28x40 inches, all of these chambers are made with corrosion resistant 304 stainless steel plate. These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door or a stainless steel door for chemical resistance, and aluminum or stainless steel door with choice of a built-in viewing port. For custom options please call.
| 24″ CHAMBER SPECIFICATIONS | |
| Interior Chamber Size | Approximately 28x28x40 inches (approx. 71x71x102 cm) |
| Ports Include | 1x ISO200, 1x ISO100, 1x ISO63, 2x KF40, 2x KF25, 1x KF16 |
| Chamber Material | 304 Stainless Steel |
| Weight | 865 lbs (393 kg) w/o door |
| Volume | 18.15 cu. ft. (514 liters) |
| Hinged Front Door | Aluminum With Built-in Viewing Port |
| Ultimate Pressure | 1×10-6Â Torr (High Vacuum) |
| Leak Tested | (Helium) to 1×10-8Â atm cc/sec |
| Operating Temperature Range (Viton Seal) | 5° to 302°F (-15° to 150°C) |
| Lead Time | One to Two Weeks (7-14 days) |
| Call for additional porting options or for expanded temperature range Call for additional coating options | |
Original price was: $26,000.00.$23,600.00Current price is: $23,600.00.
