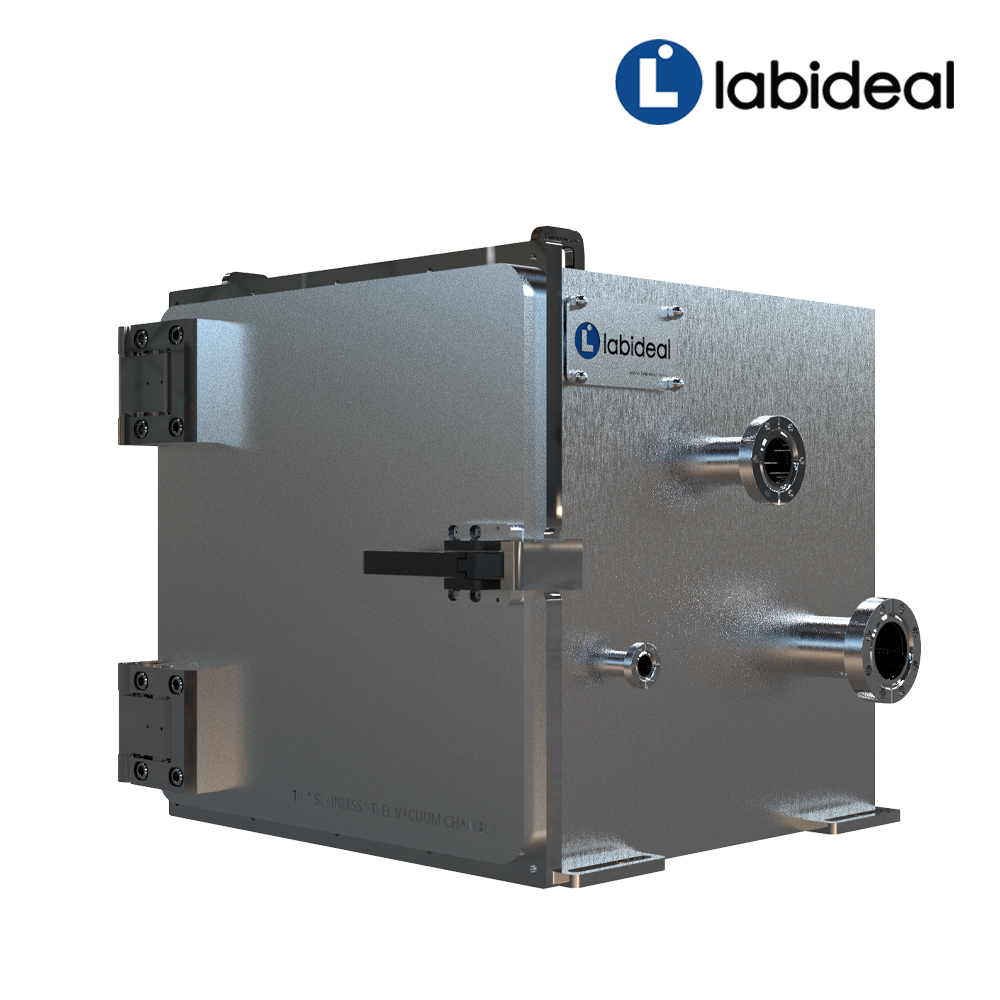

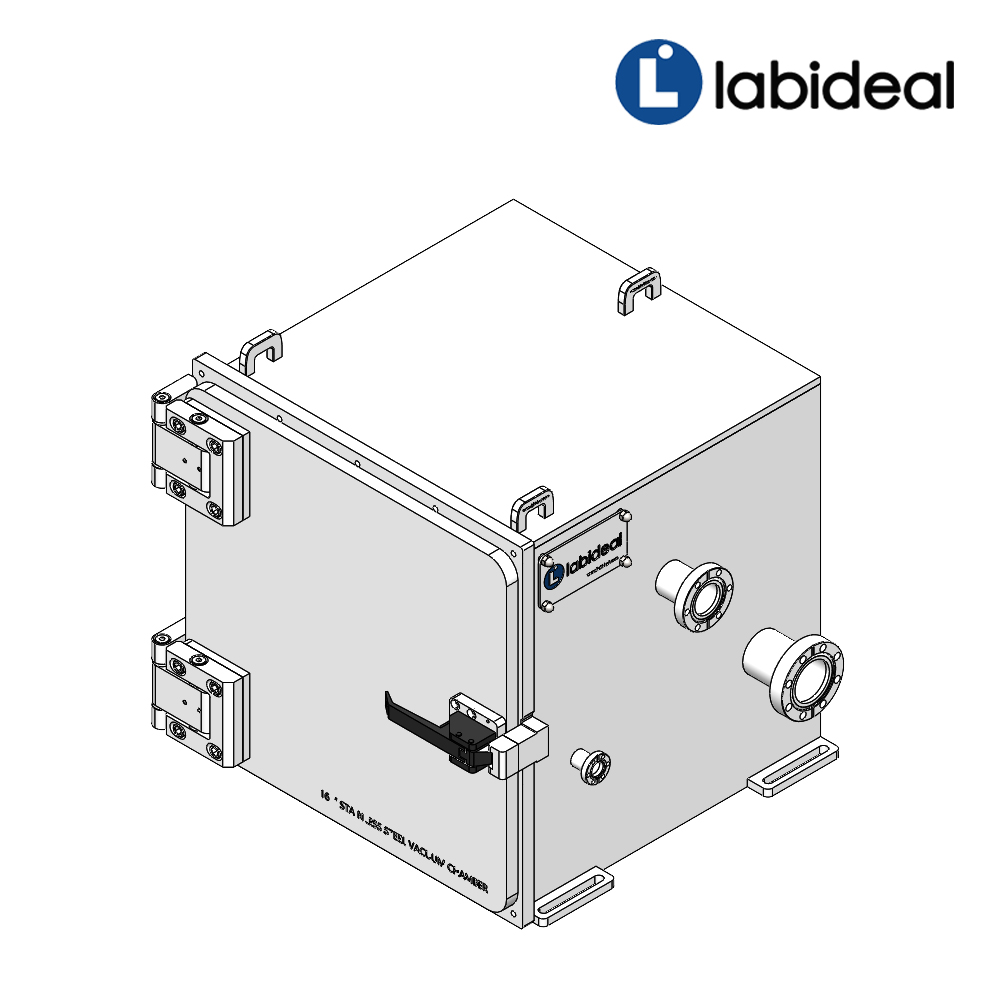

16 in Cubic Vacuum Chamber, Preconfigured with CF Flanges and User Selectable Latching Door, Stainless Steel

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 16 x 16 x 16 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door, a stainless steel door for chemical resistance, a clear acrylic door for direct viewing, and coming soon, a machined aluminum door for fixturing feedthroughs and miscellaneous internal components. All plates have a sanded finish and are electropolished on the internal side.

Specifications

• Interior Chamber Size: Approximately 16X16X16 inches (approx. 40.6X40.6X40.6cm)
• Ports Include: 1x CF 6 in, 2x CF 3.375 in, 2x CF 2.75 in, 2x CF 1.33 in
• Chamber Material: 304 Stainless Steel
• Weight: Approximately 160lbs (73Kg) w/o door
• Chamber Volume: Approximately 2.46 cu. ft. (69.6 liters)
• Hinged Front Door: Aluminum, Stainless Steel, or Acrylic
• Ultimate Pressure: 1×10^-6 Torr (High Vacuum)
• Leak Tested: (Helium) to 1×10^-8 atm cc/sec
• Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
• Lead Time: One to Two Weeks (7-14 days)
• Call for additional porting options
• Call for expanded temperature range
