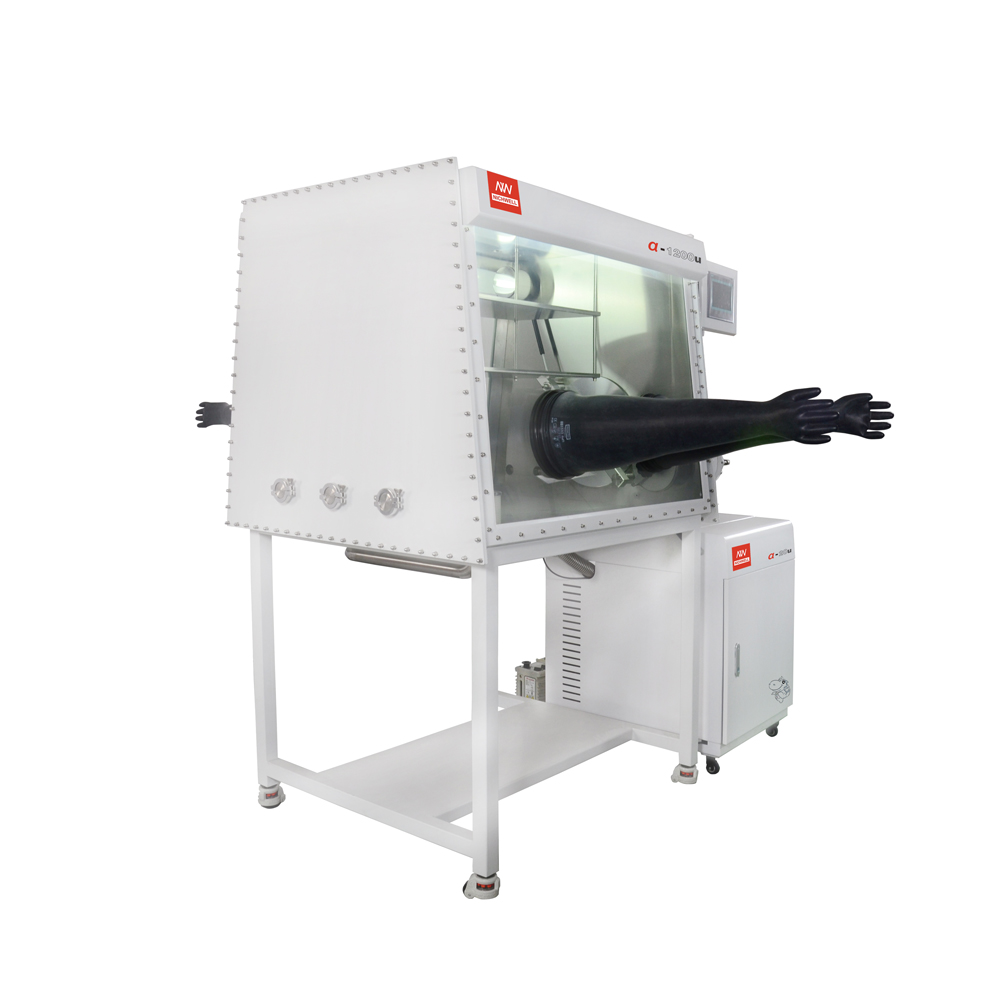

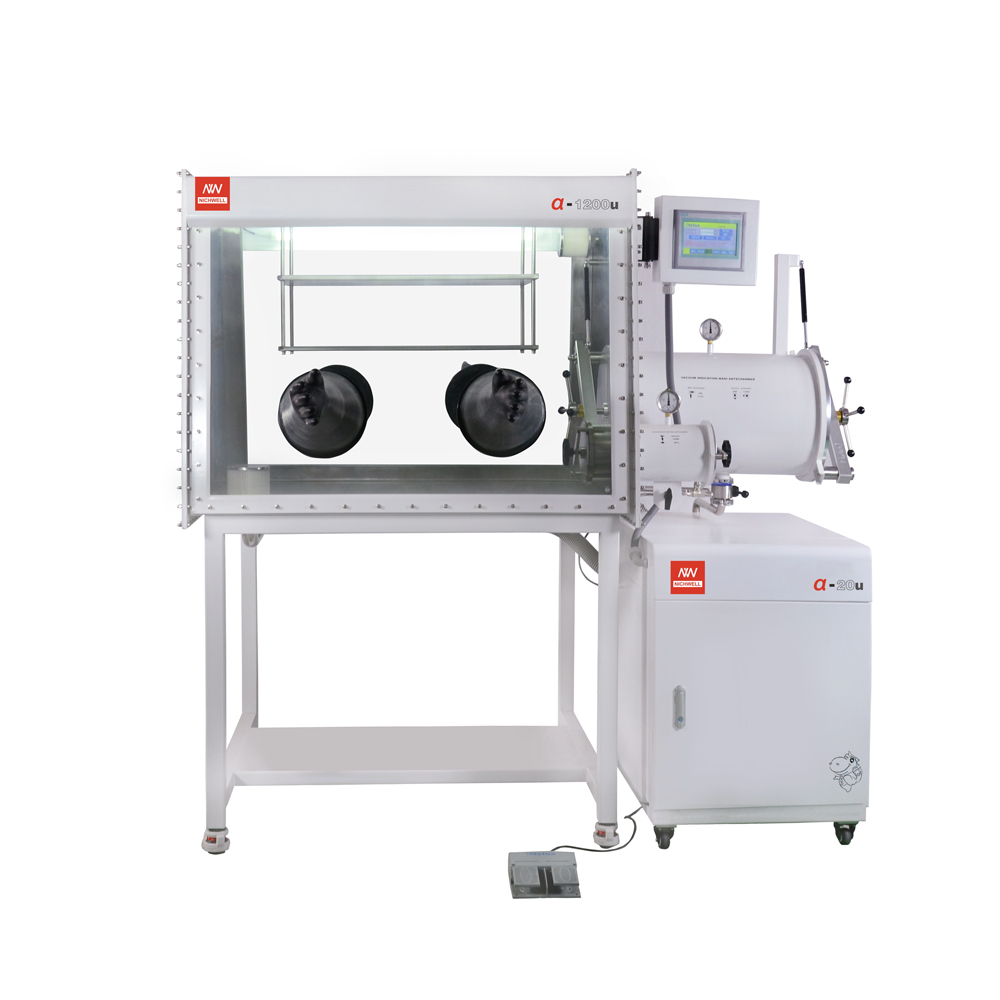

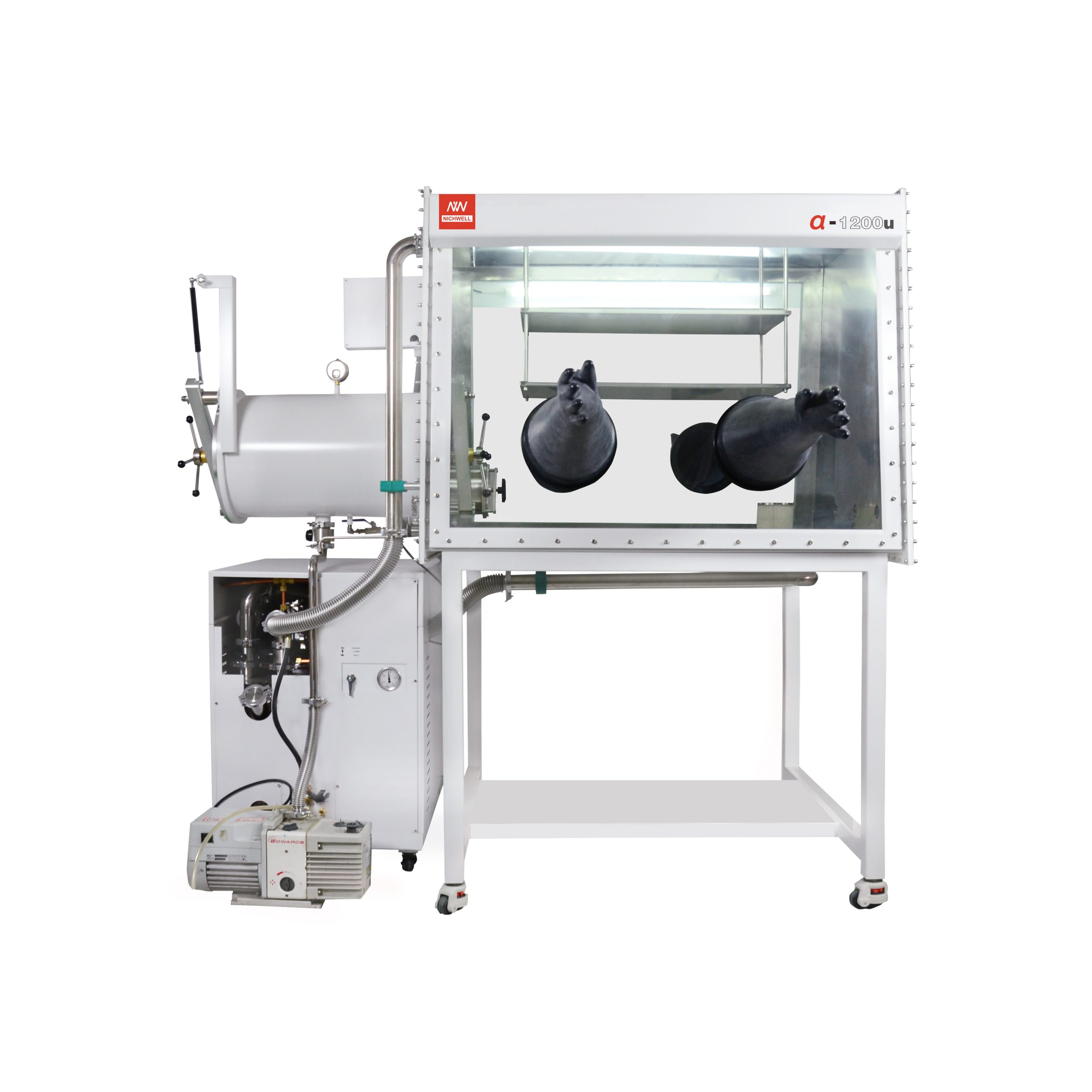

α-1200U Separated Two-sided Inert Vacuum Controlled Atmospheres Glovebox
Standard models of gloveboxes are complete standalone systems integrated with entire functional components. They are able to create an inert environment with less than 1 ppm of H2O and O2. The systems are modulated with antechambers, removable windows, adjustable trays, lighting units, adjustable shelves, and gloves, which meet most of the operational needs in the glovebox. The systems are made of welded stainless steel and are equipped with highest-quality components. We also provide optional components to meet your special requirements. The standard models include a series of glovebox chamber lengths including 1200, 1500, 1800, and 2400 mm. We also take custom-built orders according to your needs.
Key Features
- Two-sided access to the main chamber
- Glovebox with all-welded stainless steel design
- All stainless steel pipework
- Removable front window as an entry for large equipment
- Purifier regeneration frequency once per year
- Automatic antechamber control
- Main antechamber plus mini antechamber
- Vacuum pump for antechambers
- Oxygen Analyzer and Moisture Analyzer
- Auto purge function
- User friendly and simple operation: Color LCD touch panel and PLC controller
- Energy-Save mode, automatically reducing power consumption by up to 90% during idle periods
- Automatic regenerable H2O/O2 purifier
- Attainable purity O2<1 ppm , H2O<1 ppm (dew point also available for moisture reading)
- Industry leading low leak rate of <0.05% Vol/hour at -10 mbar condition
- Stainless steel encapsulated blower with frequency converter
- Circulation capacity more than 84 m3/h (50 cfm) at ΔP = 60 mbar (60 Hz)
- Compatible with world-wide voltage standards
- Integrated high vacuum feedthrough
- Conform to CE
- One year limited warranty, and lifetime technical support
Typical applications
Create oxygen-free and moisture-free environment for organometallic chemistry, organic synthesis, hydrophilic chemical handling, medical devices, electronic component handling, lithium battery handling, solar cell assembly, hemoglobin and metabolic research, catalyst handling, medicine synthesis, nuclear industry, membrane of organic EL preparation, etc.
